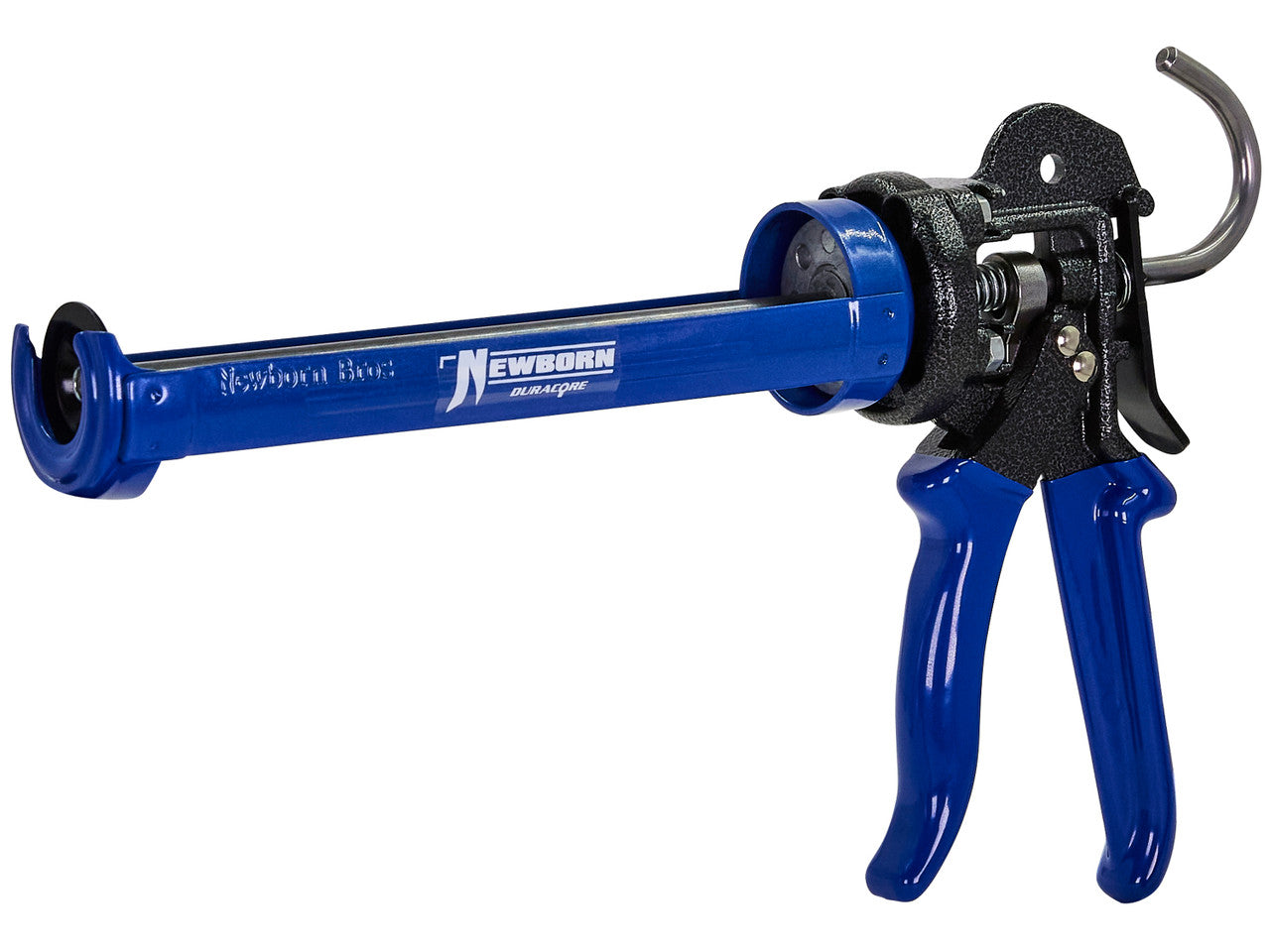

MODEL 375-XSP
375-XSP
SKU: 375-XSPManual, Smooth Rod
Thrust Ratio
26:1
Capacity
10 oz. (1/10gal)
Power Type
Manual, Smooth Rod
Weight
2.2 lbs
The dispenser either has a ladder hook built into the end of the push rod, or comes with one to attach to it.
The friction plate is made utilizing precision investment casting to provide the ultimate in durability.
Automatically removes trigger play as the gun wears, providing maximum trigger action with every squeeze.
Drive rod has been heat treated to a proprietary hardness for increased strength and durability.
The cradle/barrel on these dispensers revolves fully 360 degrees.
The hole on the thumb release plate is a reverse-punch star burst hole, which makes releasing pressure on the dispenser easier than traditional straight, flat holes.
Extra thick zinc alloy handle and trigger has a hammered finish and coated with a rubber comfort grip.
Why Choose the Model 375-XSP?
The Newborn 375-XSP is a smooth rod cartridge caulking gun built for precision and performance on a wide range of sealing applications. Featuring a 26:1 thrust ratio, it delivers strong, controlled material flow.
Type: Smooth Rod Revolving Frame
Material Compatibility
Ideal Projects
- Firestopping
- Concrete and Crack Repair & Masonry
Quick Specs
Thrust Ratio
26:1
Weight
2.2 lbs
Capacity
10 oz. (1/10gal)
Power Type
Manual, Smooth Rod
Country of Origin
China/Taiwan
Technical Specifications
Specifications
| Thrust Ratio | 26:1 |
| Power | Manual, Smooth Rod |
| Capacity | 10 oz. (1/10gal) |
| Package Size | Cartridge, 10oz / 1/10th gallon |
| Weight | 2.2 lbs |
| Country of Origin | China/Taiwan |
Applications
| Material Type | Hybrid / STP, Polyurethane, Butyl, Epoxy, Mastic |
| Project Type | Firestopping, Concrete and Crack Repair & Masonry |
